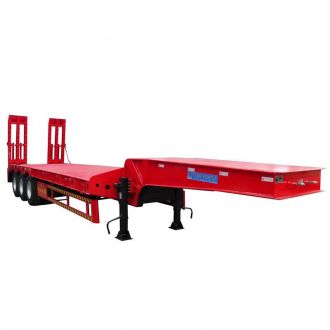

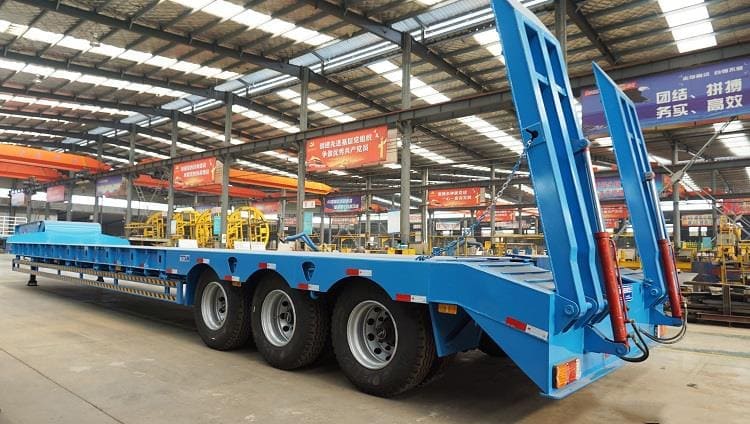

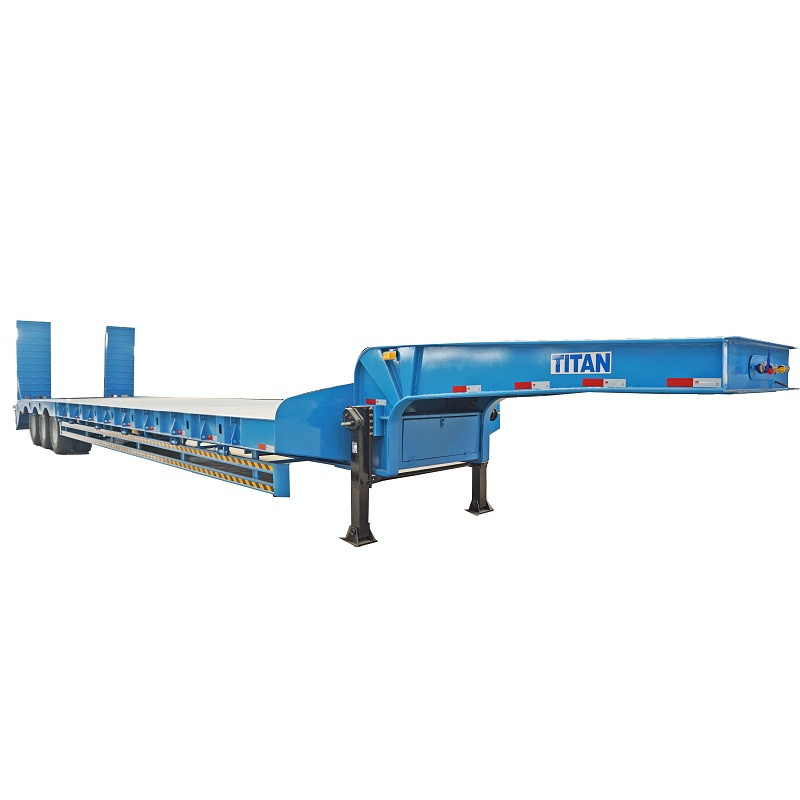

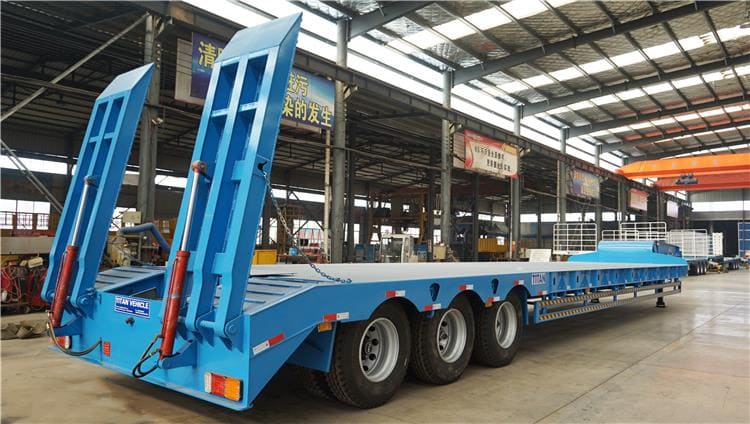

3 Axle 40 Ton Low Bed Trailer

40 Ton Low Bed Trailer:

TITAN 3 axle 40 ton low bed trailers are widely used in heavy machines transportation.

TITAN low bed trailer manufacturers can satisfy the concentrated force, the anti bump, the distortion resistance and adopts HG60 High Strength Steel Material. we use it to make sure that our TITAN tri axle low bed trailer is with a long service life and to avoid unnecessary maintenance.

What is Low Bed Trailer | 3 Axle 40 Ton Low Bed Trailer Manufacturers in Ghana Kumasi

What is Low Bed Trailer | 3 Axle 40 Ton Low Bed Trailer Manufacturers in Ghana Kumasi

What is Low Bed Trailer | 3 Axle 40 Ton Low Bed Trailer Manufacturers in Ghana Kumasi

Advantage of low bed trailer:

1. Main beam adopts HG60 high strength steel, with high loading capacity.

2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. polyurethane paint, with long service life, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.

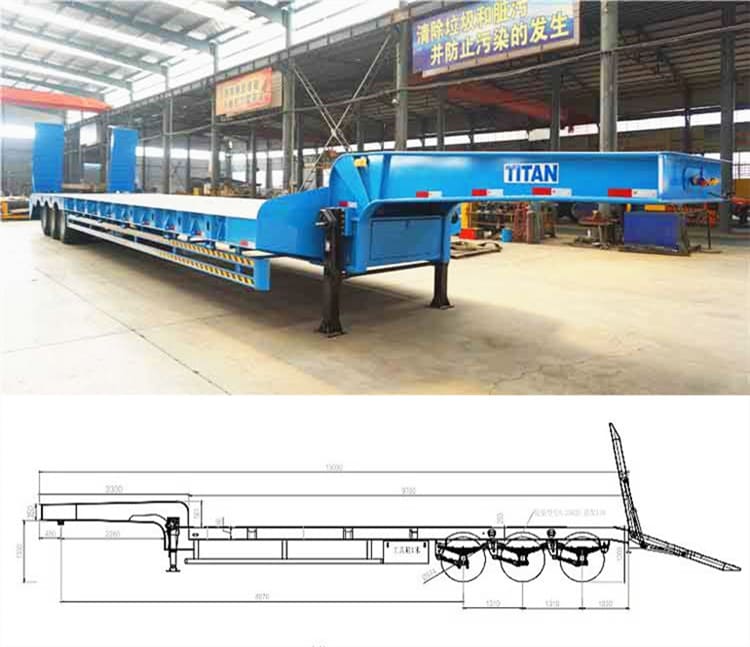

Specification of low bed trailer:

Overall dimension: 16000mm * 3000mm *3400mm

Loading capacity(T): 40-100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Through this videos, you can learn about different types of low bed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

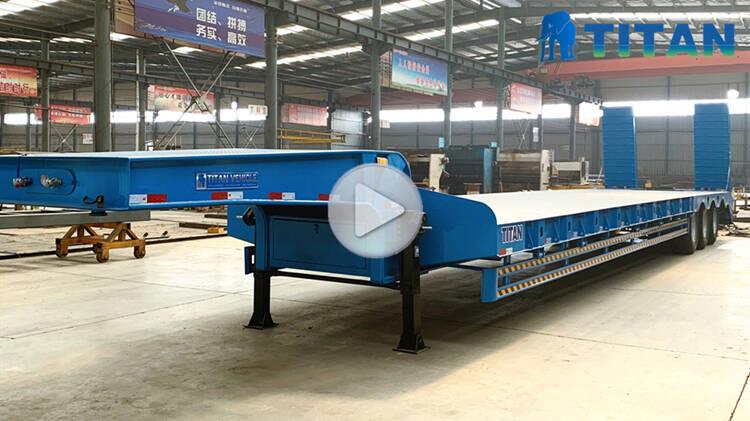

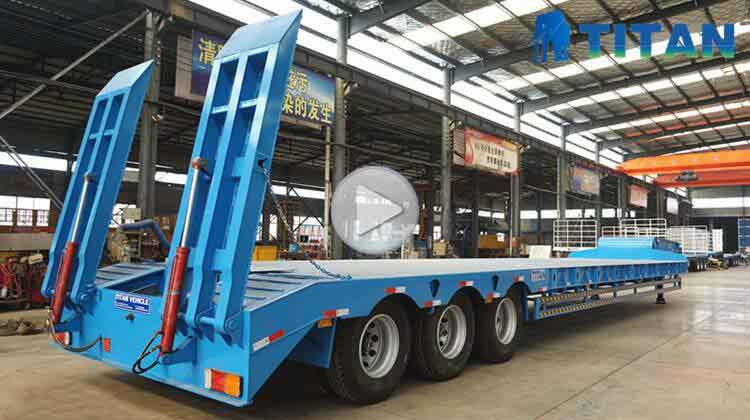

3 Axle Low bed trailer details display video

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
