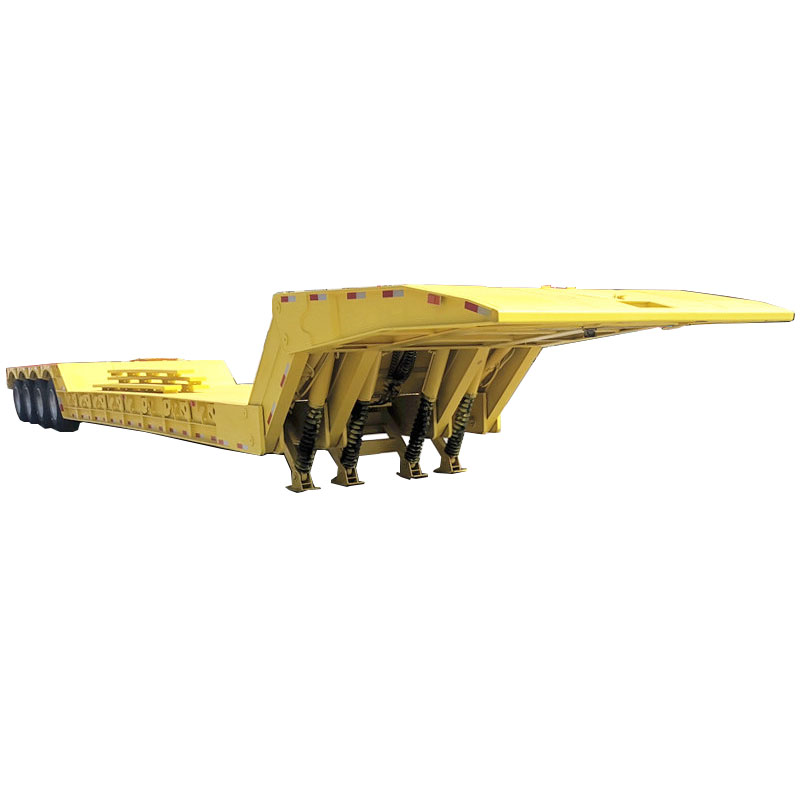

4 Axle Folding Gooseneck Lowboy Trailers

Folding Gooseneck Lowboy Trailers:

When unhooking from the prime mover, the folding neck trailer for sale’s neck could be folded to ground as a shallow slope for crawler crane and other machines to drive on.

The gooseneck of this folding gooseneck trailer is a design with a hydraulic folding structure. When the structure folded, it’s a gooseneck to connect the folding gooseneck lowboy trailer for sale with the prime mover. When it unfolded, it’s will touch the ground as a shallow slope for cargos loading. Compare to rear ramps, folding gooseneck is shallow and stable, could effective solutions for cargo loading.

Prices of 4 Axle Folding Gooseneck Lowboy Trailers for Sale in Ghana Takoradi

Prices of 4 Axle Folding Gooseneck Lowboy Trailers for Sale in Ghana Takoradi

Prices of 4 Axle Folding Gooseneck Lowboy Trailers for Sale in Ghana Takoradi

Folding Gooseneck Specification:

Dimension: 18000mm x 3800mm x 1800mm

Working platform: 14000*3800MM

Loading capacity: 100 TONS.4 AXLES,16TONS.

Gooseneck: hydraulic folding gooseneck.

Side hook for chain or belt

Checkered plate with 20 mm squre bar on ramps

Twist locks :6 units for 40/45 ft container

Axle: 4 Axle

Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

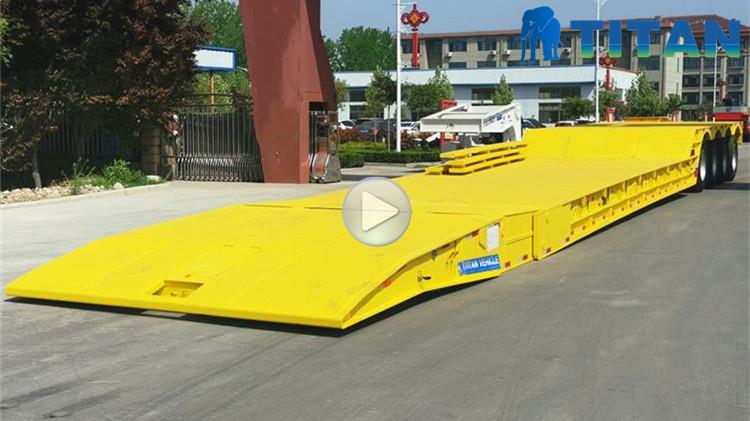

Through the video, you can know different types of gooseneck trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
