With TITAN precise engineering, high quality materials, and thorough protective measures, the flatbed trailer is designed to provide dependable performance in diverse applications and road conditions, making it a practical and economical transportation choice.
The 40 ft flatbed trailer is built to carry both 20-foot and 40-foot standard containers, offering an efficient transport option for moving goods between ports and inland locations in Ghana. Based on the proven structure, the flatbed trailer for sale is further optimized to improve weight distribution and adaptability under heavy duty operations. By spreading the load evenly across the frame, it reduces pressure on specific areas, helping to prevent localized stress, deformation, or other structural issues.
Dimension: 12500mm*2500mm*1550mm

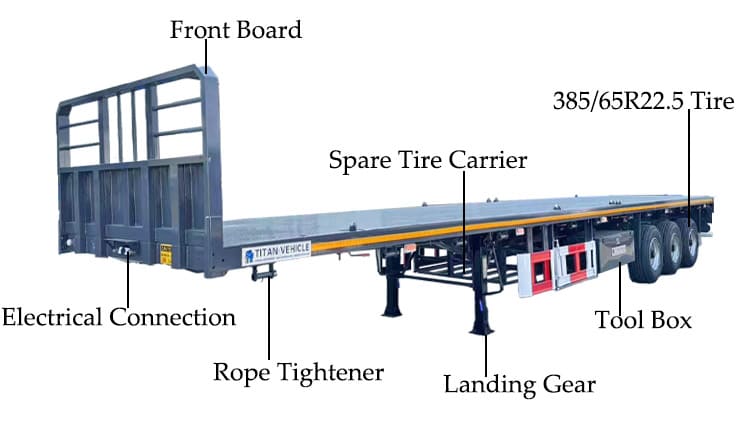

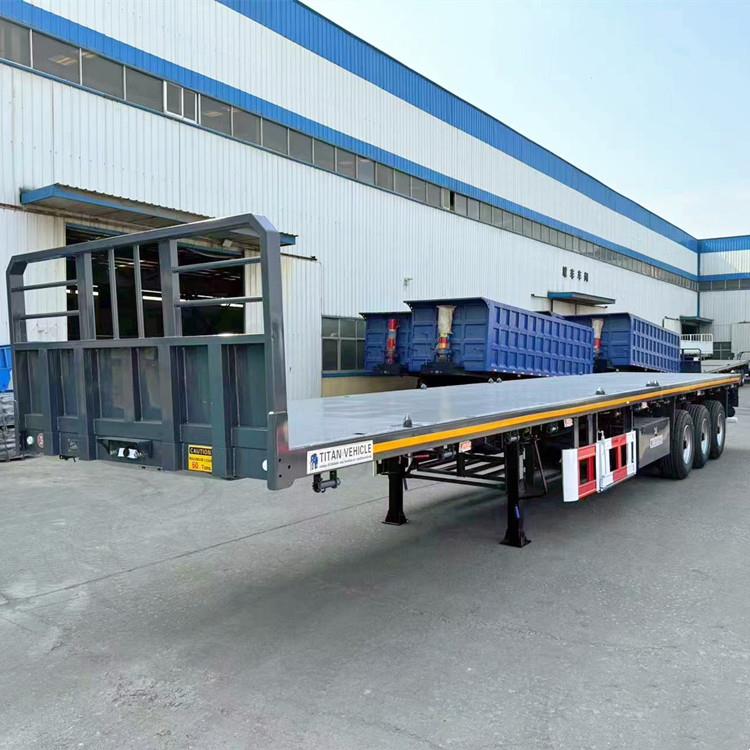

Trailer Future: with front board
Loading capacity: 60 ton

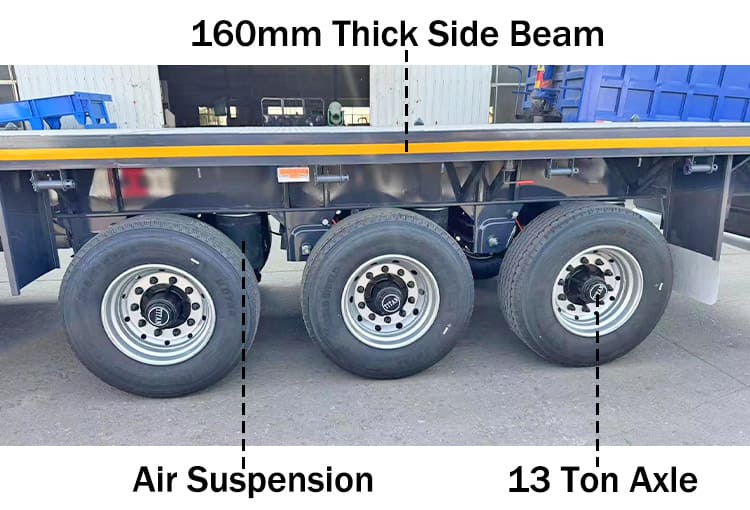

Side Beam: 160mm high
Axles: 3 axles, TITAN brand, 13 ton
Tire: 385/65R22.5, 12 units
Suspension: air suspension
Bumper: 4mm thickened bumper

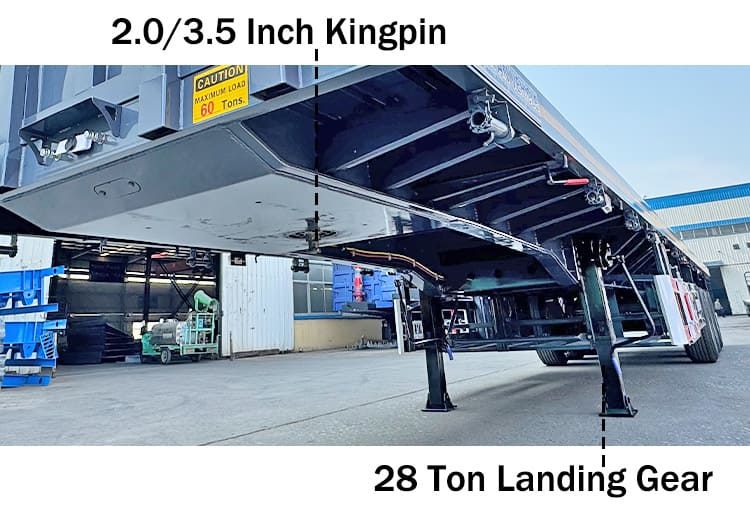

Landing Gear: 28 ton
Lamp: LED lamp with anti-theft net
The flatbed trailer for sale near me is designed with durability and practical performance in mind. Its frame is made from low-carbon, high-strength alloy steel, recognized for its balance of toughness and resilience.
To enhance structural integrity and improve load-handling capabilities, an automatic submerged arc welding process is used. This mature welding technique ensures firm and consistent joints between the main components, allowing the 40 ft flatbed trailer to maintain stability even under demanding workloads.
Special attention is given to high stress points, particularly the gooseneck area, which handles heavier loads. Here, a double-layer steel plate structure is added to improve compression resistance. This reinforcement strengthens the flatbed trailer for sale, making it less prone to bending or damage when transporting oversized or concentrated cargo, ultimately extending service life and boosting safety during operation.
Surface finishing is another factor contributing to long term performance. The flatbed trailer for sale near me undergoes a powder spraying and baking paint treatment. While this method requires a higher initial investment, it delivers greater durability and value over time.
The coating helps protect the surface from fading and wear caused by long term sun exposure. Compared to traditional paint, the powder-coated finish is more resistant to chipping or peeling, reducing the need for frequent maintenance and keeping the 40 ft flatbed trailer looking good for longer.

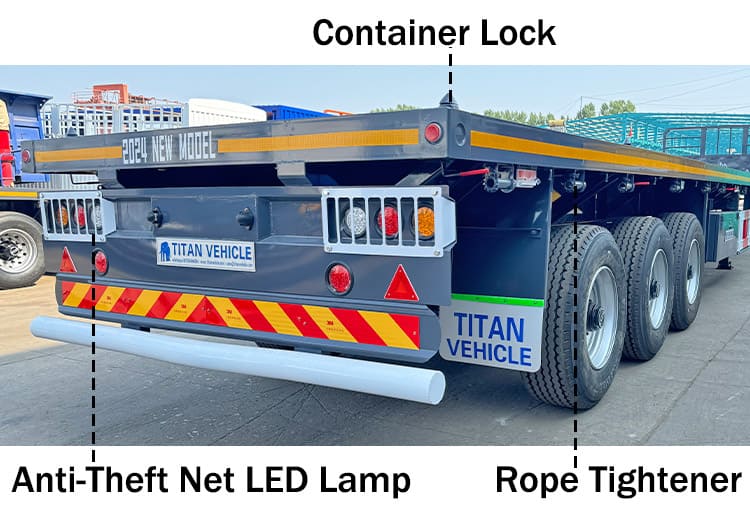

Safety features are also incorporated into the design. High visibility reflective strips are mounted on the rear of the TITAN flatbed trailer for sale, greatly improving visibility at night or in low light conditions and alerting surrounding drivers and pedestrians. The taillights are equipped with anti-theft measures, keeping them secure during both transport and idle periods.
The rear bumper of the flatbed trailer for sale near me is constructed from 4 mm thick steel and finished with the same powder coating as the main body. This ensures reliable protection against corrosion in both Ghana dry inland areas and its humid coastal environment. In the event of a rear-end impact, the reinforced bumper absorbs shock effectively, helping to protect both the frame and the cargo from severe damage.
In terms of undercarriage strength, the 40 ft flatbed trailer for sale near me uses heavy duty components to ensure stability during extended hauls. It is equipped with 13 ton axles, which provide superior load bearing performance and help prevent failures caused by overloading.
These axles perform well on challenging road conditions, including gravel roads and uneven terrain, making the 40 ft flatbed trailer well-suited for Ghana varied transportation routes. Their strength also minimizes the risk of frame deformation from continuous vibrations or sudden jolts.
TITAN also takes measures to protect the flatbed trailer for sale during shipping. Before dispatch, every 40 ft flatbed trailer is coated with protective wax, followed by wrapping in waterproof fabric. This double-layer defense shields the flatbed trailer for sale near me from moisture, sea spray, and salt air during maritime transport, reducing the chances of rust and corrosion.
For delivery, customers can select either roll-on/roll-off (RoRo) or containerized shipping methods, depending on logistical preferences and the destination requirements for the 40 ft flatbed trailer for sale near me.
