By combining strength, adaptability, and operational balance, this equipment is capable of transporting dense bulk materials, high-volume aggregates, and mixed construction cargo with consistent stability. Its reinforced framework and flexible working design allow the semi dump truck trailer to adapt to varying loading methods, making it a dependable transport solution for long-haul logistics and industrial projects across Ghana markets.
Dimension: 11000mmx2500mm x3950mm
Load Capacity: 80 ton
Volume: 35CBM

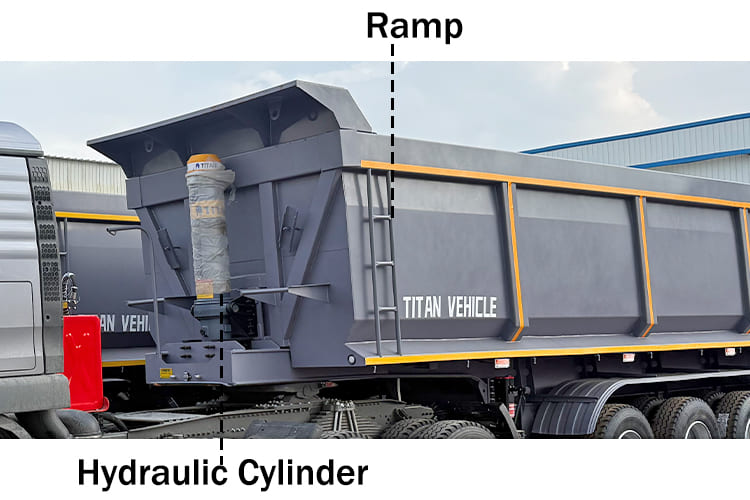

Tipping System: hydraulic cylinder
Axles: 4 axles, TITAN brand, 13ton,
Tire: 16 units, 12R22.5
Kingpin: 2.0 /3.5inch JOST brand
Landing Gear: 28 ton, JOST
Suspension: mechanical suspension
Leaf Spring: 10 layers
Lamp: LED Lamp
The exterior finish of the semi dump truck trailer features a clean white coating applied through an advanced powder-spraying and high-temperature baking process. Even after years of exposure to sunlight and outdoor conditions, the finish retains its brightness and shows minimal fading, helping the dump truck trailer for sale maintain a professional appearance and reduce repainting expenses for operators in Ghana.
At the structural core of the dump truck trailer is its main beam, fabricated from T700 high-strength steel. This premium material offers exceptional tensile strength and fatigue resistance, enabling the beam to withstand bending, twisting, and repeated stress under uneven or heavy loads.
Such performance is especially critical for transport operations in Ghana, where extended haul distances and inconsistent road surfaces place continuous pressure on the chassis. The robust beam design ensures long-term rigidity and reduces the need for frequent structural maintenance.

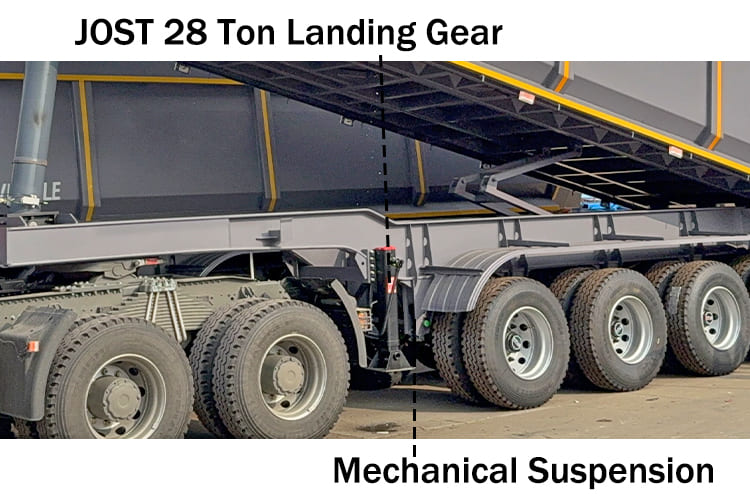

Operational stability during parking, loading, and uncoupling is supported by a reinforced landing gear system. The dump truck trailer for sale uses a wide-base landing assembly designed to handle substantial static loads while distributing ground pressure evenly.
This design minimizes the risk of sinking or tilting on soft soil, gravel yards, or unpaved construction sites. Improved ground contact not only protects the trailer structure but also enhances safety when handling bulk materials that may shift unexpectedly during loading in Ghana.
The semi dump truck trailer is equipped with a heavy-duty mechanical suspension system that incorporates thickened, multi-layer leaf springs and a 70 mm center balance pin. This configuration effectively absorbs vibration and road shock, preventing excessive force from transferring directly to the frame. As a result, structural fatigue is reduced, tire wear is minimized, and cargo stability is improved—even when operating on rough roads commonly encountered in Ghana.
Braking capability is ensured through the use of 16-ton rated brake shoes. These components provide strong friction performance and fast response under full-load conditions. For operators using a dump truck trailer, reliable braking is a critical safety feature when transporting heavy construction materials or aggregates.

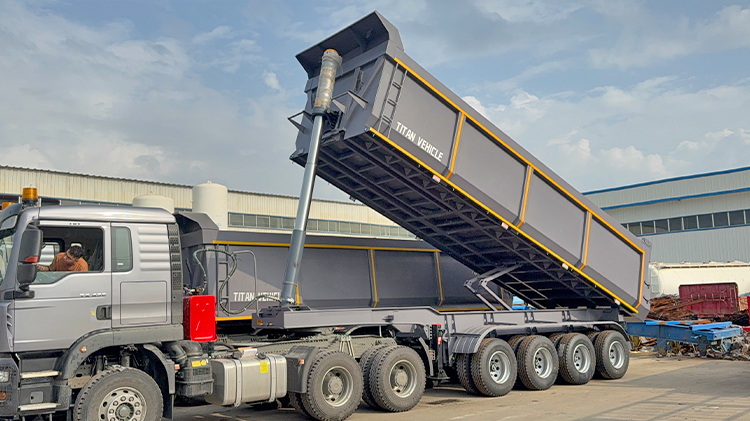

During unloading operations, the semi dump truck trailer relies on an integrated flip-support stand to enhance safety. When the hydraulic system raises the cargo bed, this reinforced support helps distribute the elevated load evenly along the chassis.
By preventing excessive stress from concentrating at a single point, the support system protects the main beam and reduces the risk of structural deformation. This design significantly extends service life and improves operational safety during frequent tipping cycles in Ghana.

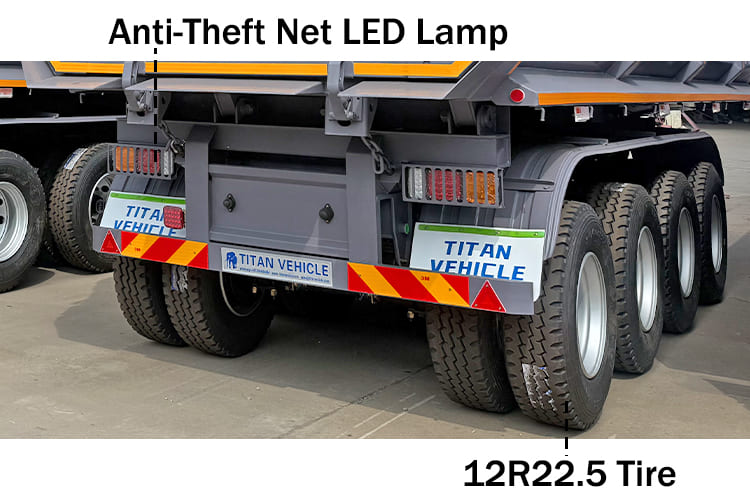

High-brightness LED lamps are installed throughout the dump truck trailer for sale, providing strong illumination with low power consumption and long service life. Their vibration-resistant construction ensures reliable performance on construction roads, quarry sites, and mining routes. Even in dusty, foggy, or low-light conditions, the lighting system enhances road visibility and operational safety, reinforcing the dump truck trailer as a reliable asset for demanding transport tasks in Ghana.
Prior to overseas delivery, each dump truck trailer for sale undergoes a comprehensive corrosion-prevention treatment to ensure durability during long-distance shipping. All exposed steel surfaces are coated with a protective wax layer that seals out moisture, followed by full wrapping using heavy-duty waterproof tarpaulin.
This dual-stage protection effectively shields the dump truck trailer from salt spray, humidity, and harsh marine environments during transit. As a result, the trailer arrives in Ghana in excellent condition, ready for immediate operation without the need for additional surface treatment.
