This 4 axle 100 ton removable gooseneck trailer for sale in Ghana is a transport vehicle specifically designed for heavy construction machinery such as excavators and crawler cranes. The trailer, with its reinforced 4 axle chassis layout and front mounted hydraulically separated gooseneck, completely breaks through the safety bottlenecks of loading ultra heavy equipment. Equipment no longer needs to climb a steep rear ladder; instead, it smoothly drives onto the gently sloping platform at the front, eliminating the risk of tipping over and injury when loading 100 ton equipment and significantly reducing the difficulty of loading and unloading operations and on site construction risks.
This 4 axle 100 ton removable gooseneck trailer for sale in Ghana features comprehensive heavy duty reinforcement in axle load distribution, torsional stiffness, and off road capability. The 4 axle linkage balance design, combined with the ultra low center of gravity concave beam platform, accurately distributes concentrated loads of up to 100 tons, perfectly meeting the stringent axle load regulations for ultra heavy duty road transport in many countries.

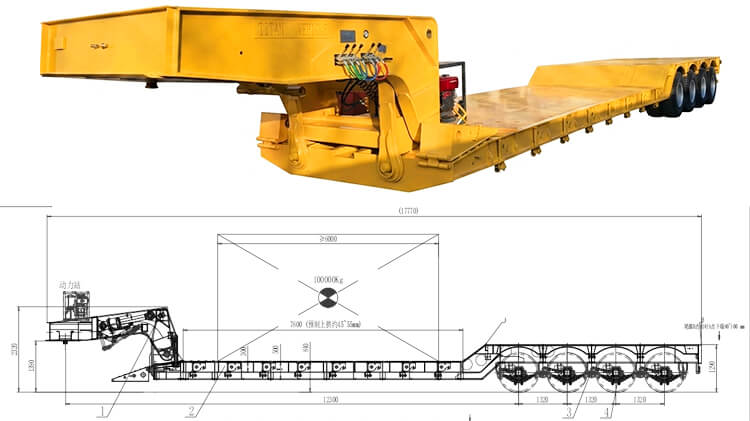

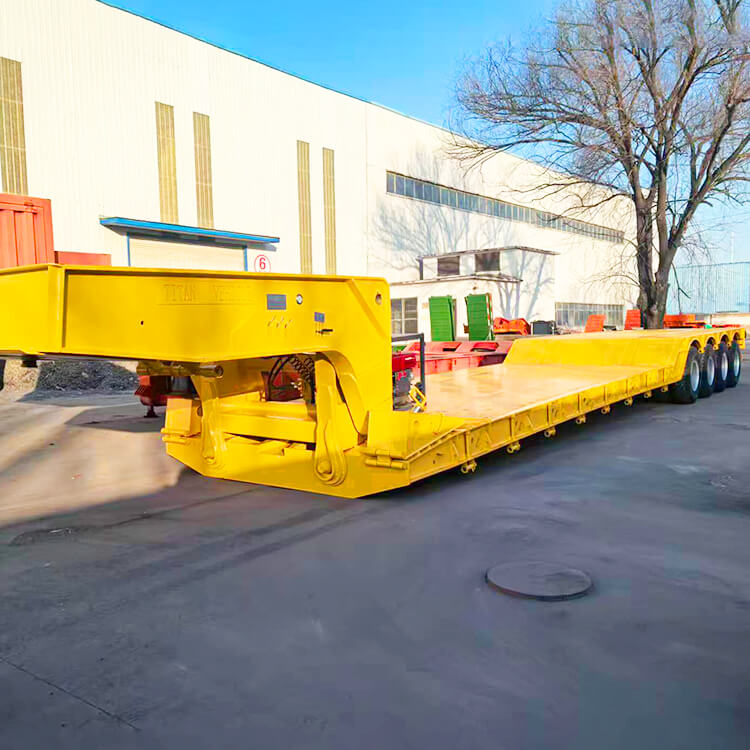

4 Axle 100 ton Removable Gooseneck Trailer for Sale in Ghana

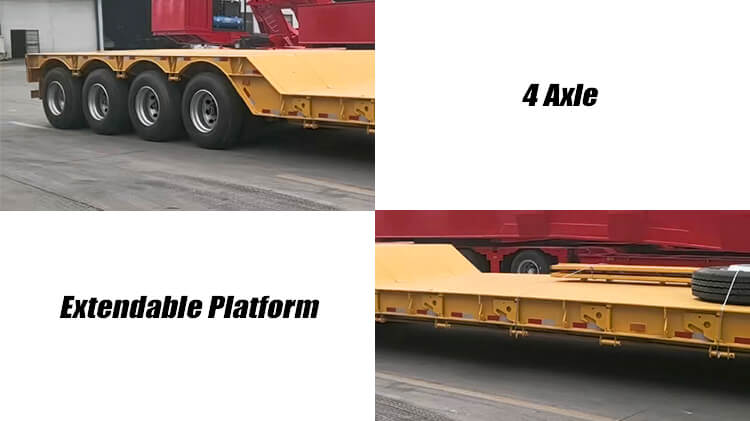

4 Axle 100 ton RNG Gooseneck Trailer for Sale in Ghana

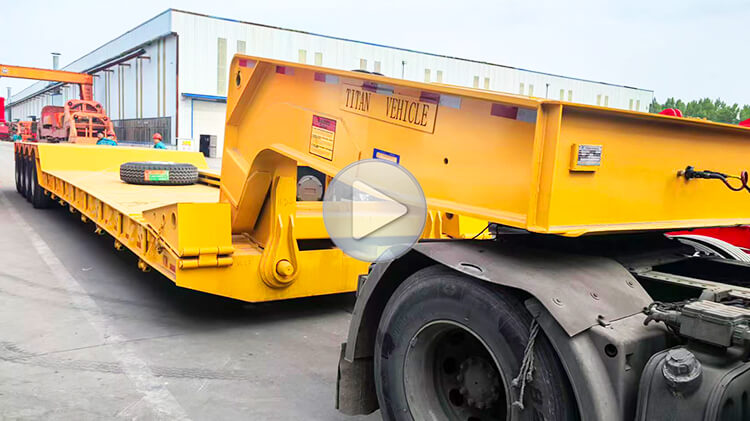

4 Axle 100 ton RNG Gooseneck Trailer for Sale in Ghana

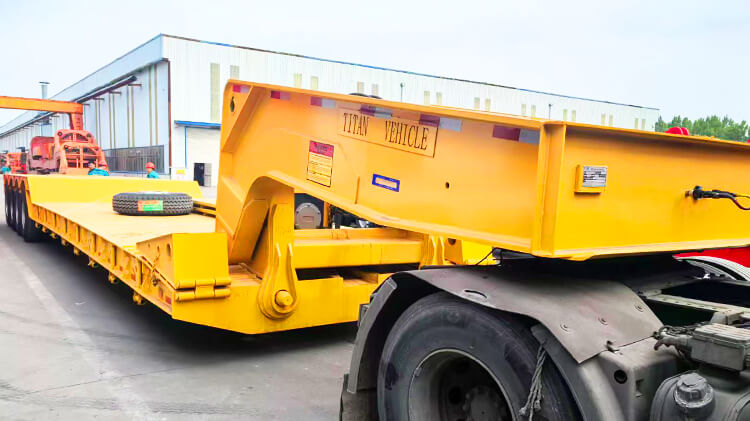

4 Axle 100 ton RNG Gooseneck Trailer for Sale in Ghana
Dimension: 17710 mm*2500 mm*2200 mm
Loading capacity: 100 ton
Floor Plate: 5mm thick pattern plate
Tire: 12 units, 12R22.5
King Pin: JOST brand 90# 50#
Axle: 4 axle
Light: LED light
1. As a heavy duty transport vehicle capable of withstanding a 100 ton ultimate load, this 4 axle removable gooseneck trailer for sale in Ghana is constructed entirely of the highest grade high strength alloy steel for its frame and core load bearing areas. The main beam adopts a double web box type structure and an ultra large cross section I beam design, combined with a fully automated three wire submerged arc welding process, possessing extremely strong bending, torsional, and impact resistance. 1. The main beam and concentrated stress areas are embedded with multiple anti torsional braces and double layer reinforced plates, ensuring the frame does not suffer permanent deformation or structural fracture even under a full load of 100 tons and encountering extremely uneven road surfaces.

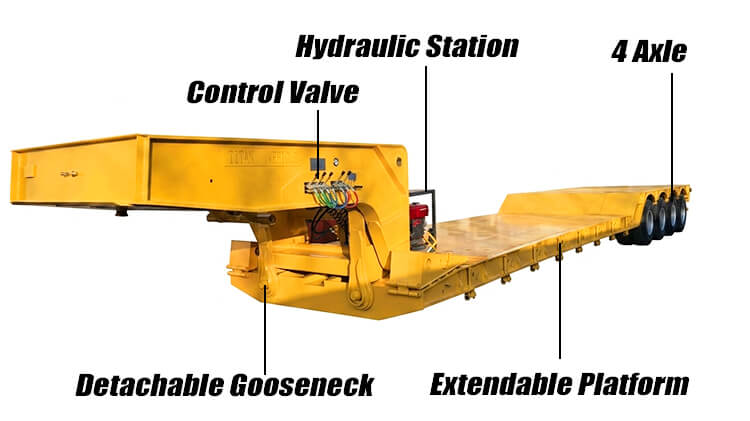

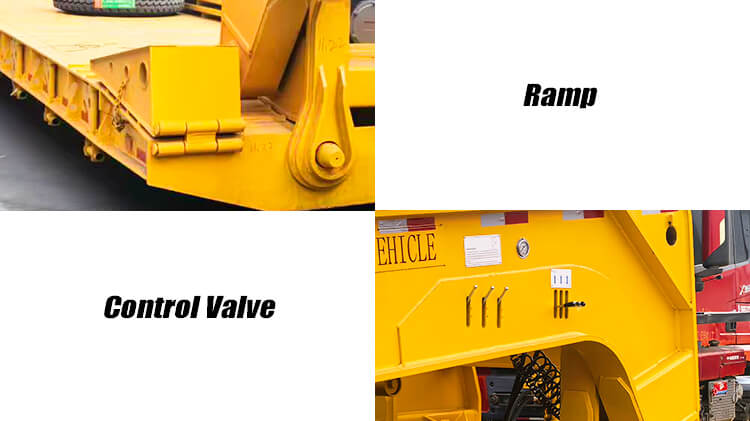

2. This 4 axle 100 ton removable gooseneck trailer for sale in Ghana features a large bore, high pressure hydraulic lifting cylinder, coupled with an independent, high horsepower diesel power unit, providing substantial and stable lifting force under high loads. The connection between the gooseneck and the front of the cargo platform employs a double safety design with heavy duty pin type mechanical locking and hydraulic self locking. The locking pin undergoes heat treatment, exhibiting extremely high wear resistance and shear resistance, ensuring the connection remains stable and safe even under high frequency vibrations, sudden braking, or severe bumps under a 100 ton load.
3. This 4 axle 100 ton removable gooseneck trailer for sale in Ghana features a 4 axle heavy duty high load bearing axle combination, coupled with thickened multi leaf spring suspension and a multi axle linkage balance arm system. This suspension can automatically adjust and evenly distribute the axle load among the four axles in real time according to road surface undulations, effectively preventing tire blowouts or bearing damage from single axle overload. The braking system has been upgraded to widened, high wear resistant brake pads, a dual circuit large capacity air tank, and a heavy duty brake chamber, providing extremely strong and long lasting braking performance.
4. The cargo platform of this 4 axle 100 ton removable gooseneck trailer for sale in Ghana utilizes an extremely low center of gravity drop deck structure, significantly reducing the loading height of 100 ton equipment and effectively navigating height restricted checkpoints. High strength side extenders are equipped on both sides of the cargo platform, easily accommodating extra wide and extra large tracked equipment. The cargo platform is laid with high strength, anti slip patterned steel plates and equipped with dozens of sets of high tonnage forged pull rings, providing all around friction locking and binding anchor points.
